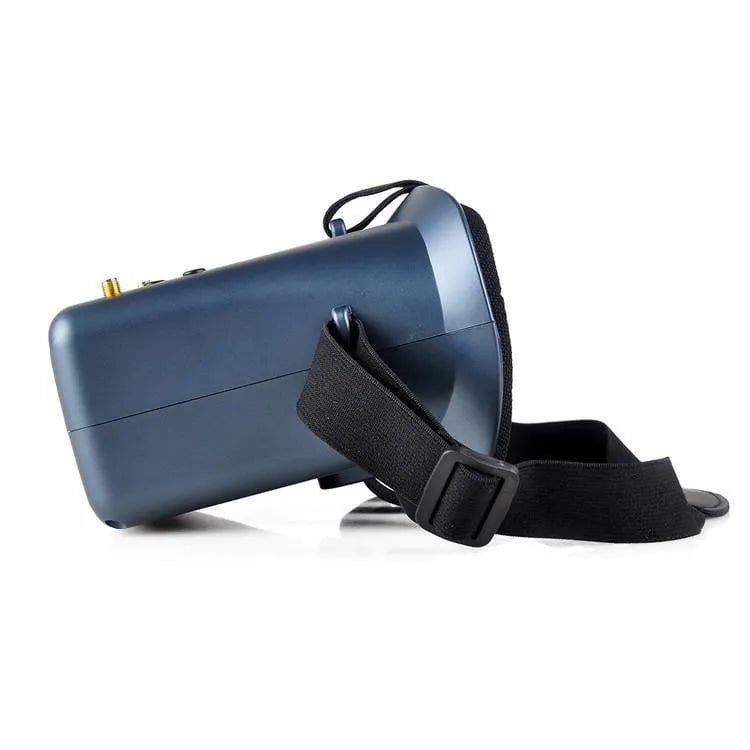

makerfire fpv goggles Makerfire VR008 Pro 4.3 Inch 5.8G 40CH FPV Goggles with DVR

Features
# High brightness 4.3 inch LCD specially tuned for FPV racing or Model airplane
# Buit-in super sensitiveness 5.8GHz 40ch receiver,especially with RaceBand.
# Come with advanced auto-searching function ad show yout the working frequency on screen
# Buit-in 3.7V/2000mA battery ,each full charge revive around 2 hours woking time
# Ergonomic design fit your faces
# 92%transparent lens adopted ,no distort,no blur on the adage of screen;
# Light weight 295g with 2hr 2000mAh battery,RTF for any scale,racing ,Model airplane game
# 4.3 inch 480*272px HD high brightness LCD

Product Specification:
Body
Dimension: CNT Size. 190*190*130mm, Product Size.155x144x113mm
Weight: N.W. 295g with 2hr 2000mAh battery, G.W. 608g
Belt: three-Ways adjustable belt
Screen
screen size: 4.3 inch
Screen resolution: 480*272(No blur after enlarge by the lens)
Screen brightness; 300cd/m2 with special high brightness backlight LED for outdoor FPV
View Angle: 12 O'CLOCK
Lens
2.8x boost of the video to acquire intense feel-in-there video
92% transparent rate no distort of light

JACK
1. Input CVBS
2. Headphone sound output
3. TF Card(C10) Max32G
4. USB DC5V IN, the device operating current of 550mA@5V,built-in battery maximum charge current of 750mA@5V; if the device is working when charging, please pay attention to selecting the rated current greater than 2A/5V charging equipment.
Battery:
Built-in 3.7V/2000mAh high-capacity polymer battery, when the battery is charging, the device the red LED will light when charging is completed, here are bright green LED.
Band and Channel selection
Operation Instructions

KEY
1. K1 agrave; SearCH/AV
Default mode, Short press for automatically search signals to a certain signal strength and stops on that channel; Long press switch RF MOD and Long press for AV MOD; In Play mode, pressed jump volume adjust OSD.
2. K2 agrave;MENU/Power
Default mode, Short press for MENU OSD; Long press 3S for Power OFF/ON; MENU pressed, this button is use as the Return.
3. K3 agrave;REC/Play/OK
Default mode, Short press for recording /STOP; Long press for Play mode; MENU pressed, this button is use as the confirmed.
4. K4 agrave;Band+/VOL+
Default mode, Short press for Band+ option A,B,D,E,F,R cycle selection; Long press for Volume control -; MENU pressed, this button is use as the UP.
5. K5 agrave; CH+/VOL-
Default mode, Short press for CH 1~8 cycles; Long press for Volume control +, MENU pressed, this button is use as the DOWN.

Playback
Call MENU and select Playback (Short Press K1 button to call menu, and use K3 button to select Playback mode; Or long pressed K3 )
Review/Replay in Playback mode (Playing Short K1 jump volume adjust OSD)
Buttons have different function in playback mode
Record file: AVI, PAL( 694*576px),NTSC(694*480px) progressive
Support up to 32G TF card (C10 recommend)
K2: Playback menu (volume control/file delete/protect)
K4: UP/ fast backward lt; lt;
K5: DOWM/ fast backward gt; gt;
K3: Select/Play/ Pause
K1: Quit Playback mode

NOTE: If the device is not used for a long time, please charged once every four months, in order to protect the battery.
